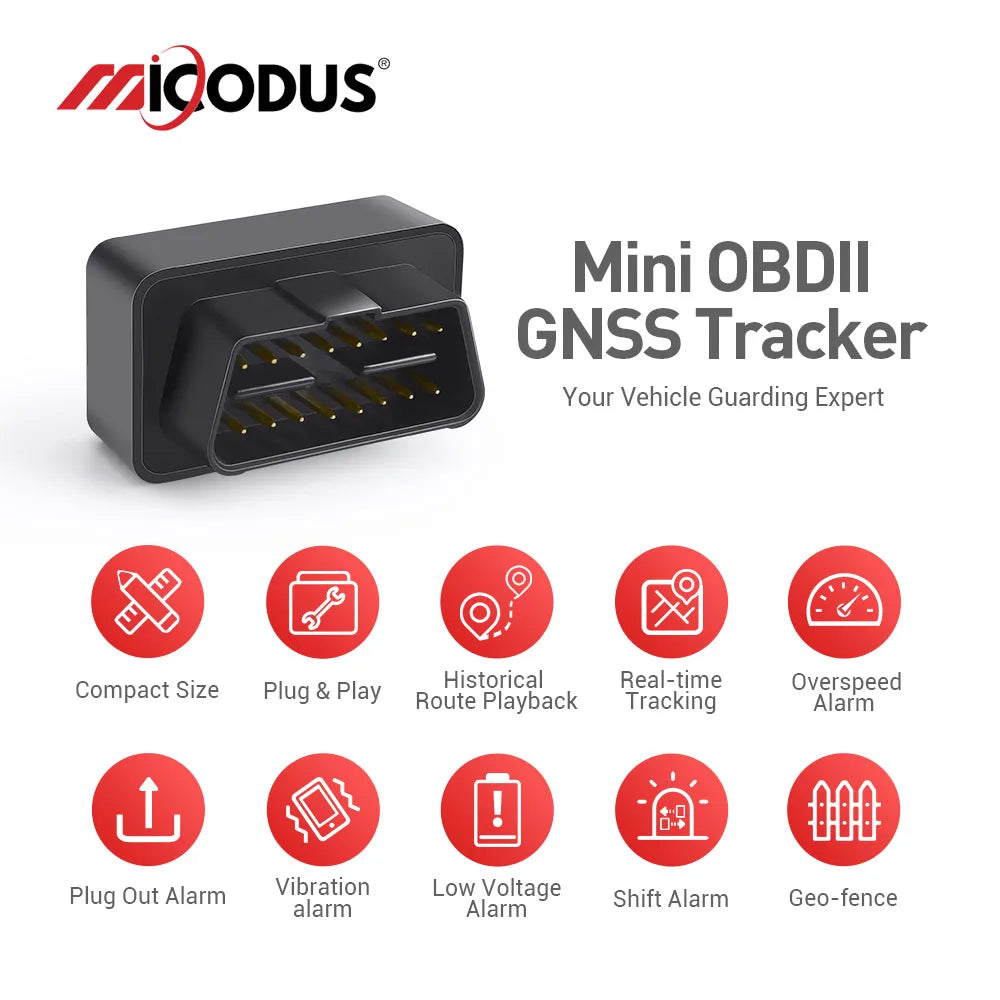

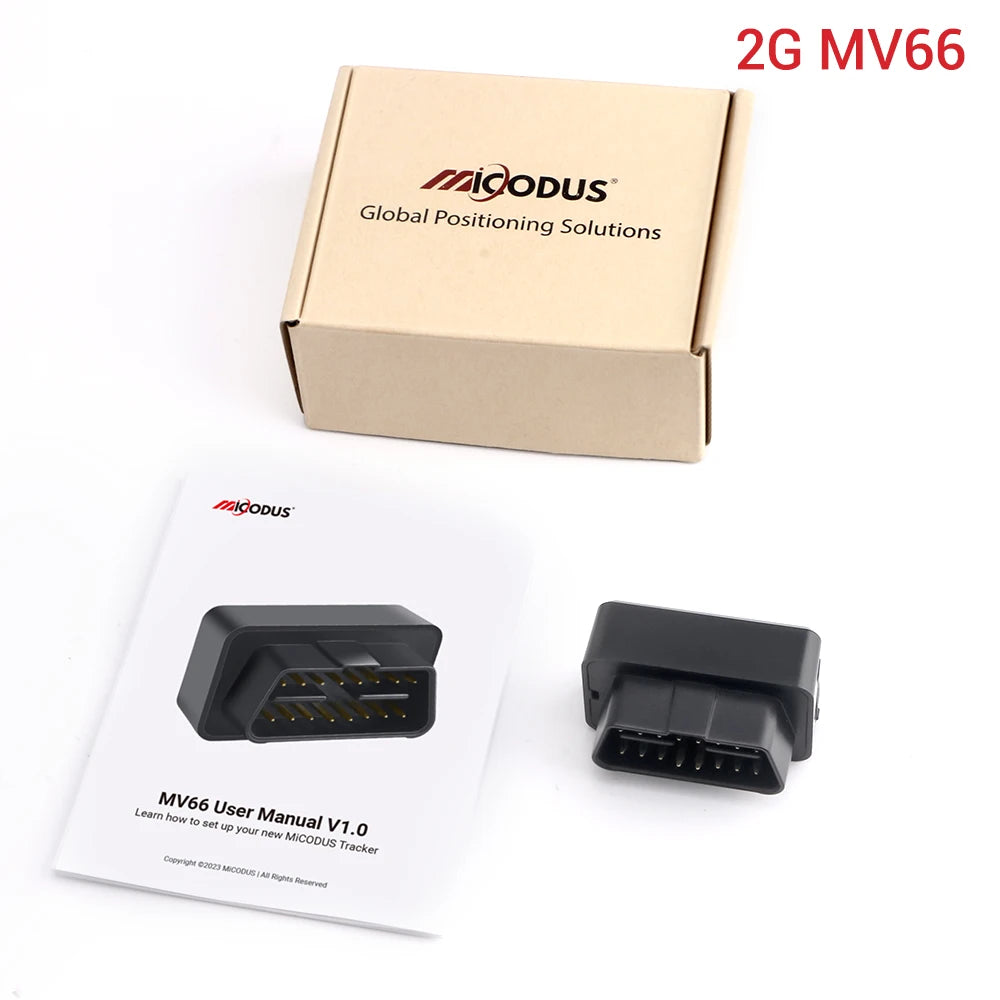

MiCODUS OBD GPS Tracker MV66 Realtime Mini GPS Tracker for Car Tracking Device Shake Move Alert Geofence Free APP
MiCODUS OBD GPS Tracker MV66 Realtime Mini GPS Tracker for Car Tracking Device Shake Move Alert Geofence Free APP
SPECIFICATIONS
Accuracy: GPS:5-10m; LBS accuracy: 100-2000m
Battery Life: 1 To 4 Hours
Brand Name: MiCODUS
Certification: CE
GPS Geographic Location: Europe,Global use
GPS Type: GPS Tracker
GPS type: GPS Tracker
Gps Module: Yes
High-concerned chemical: None
Item Size: 48(L) x 28(W) x 29(H)mm
Main Functions1: Global Infinite Tracking
Main Functions2: Historical Route Playback;Overspeed alarm
Main Functions3: Battery Detection and Alarm;Blind Area Data Saving
Main Functions4: Plug out alarm;Vibration Alarm
Main Functions5: Shift Alarm;Geo-fence;Engine Start/Flameout Alarm
Model Name: MV66
Network and Frequency: 2G GSM/GPRS; 850/900/1800/2100Mhz
Origin: Mainland China
Out Power: 0.05W
Period of use: Lifetime free
Positioning Ways: GNSS+LBS+AGPS
Screen Size: No screen
Special Features: Internet Connected
Special Features 1: Easy Installation and Hidden
Special Features 2: Compact size plug & plug;Multiple Positioning Modes
Track Platform: http://www.micodus.net
Voltage: 12 V
Working Humidity: 5%-95%RH
Working Temperature: -20°C - 75°C
IMPORTANT, PLEASE NOTE:

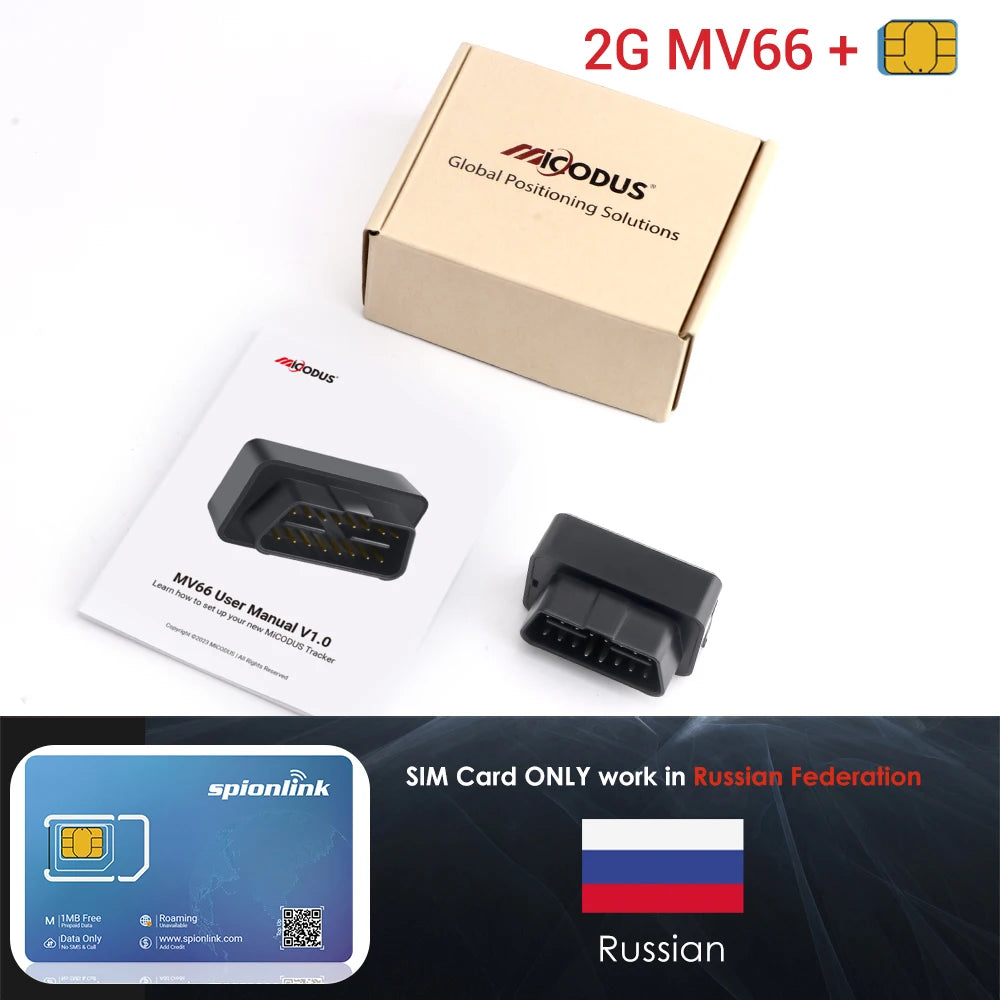

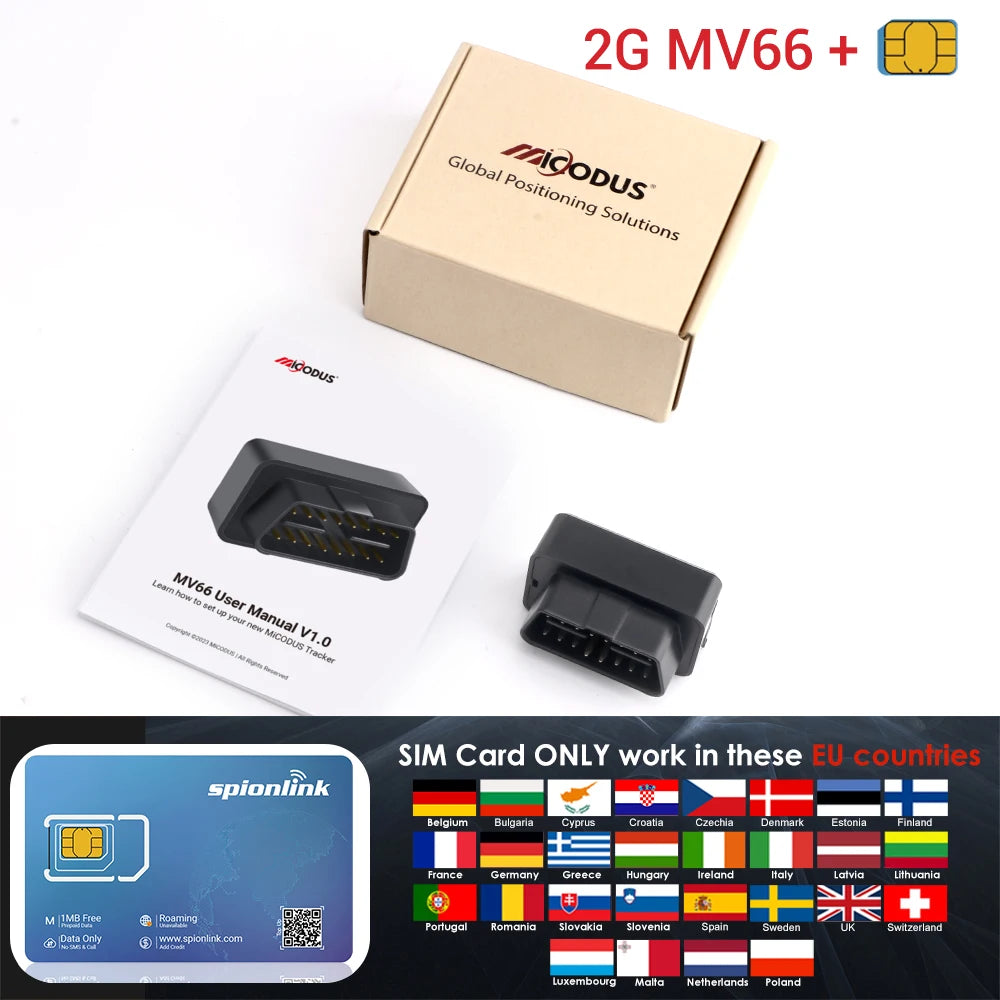

1. Our Spionlink Sim card only support to work with the following countries, It doesn't work in other counties.
Russian Federation,Belgium, Bulgaria, Cyprus, Croatia, Czechia, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom,Switzerland ,USA, Canada, Mexico, Puerto Rico.
2. Our Spionlink is only data sim card, not support sms and calling, if you want to use this function, then please order sim card from your local.
3. Spionlink only 1MB free data in it, after testing you need top up it.
4. If you get SIM card from your local place, please make sure the SIM card meet with below points:
* The SIM card must be compatible with the 2G GSM network;
* The SIM card must enable SMS, internet data traffic and caller ID display functions;
* Please use Nano size SIM card for the tracker
* Contact the SIM card provider to get the exact correct APN information
5. Please follow with below steps to manage this OBD tracker:
Prepare a suitable SIM card for the tracker---->Install the Nano size SIM card via the correct direction---->Connect the tracker with the OBD port of your car for power supply(make sure the place the car stayed has good signal)---->Configure APN for the tracker to let it get connect with the MiCODUS tracking platform
Easy for installation and hidden
Small size, easy play & plug,much more convenient for hidden
Easy Installation and Hidden:Compact size plug & plug, much more convenient for installation and hidden.
About Network & Suitable for most OBD Vehicle
The device can be used normally in your country; Except for these countries:
USA, Australia, New Zealand, Korea, Japan, Canada, Singapore, China Taiwan
GPS+GLONASS+LBS. The accuracy can reach 5 meters when the satellite signal is good, when the equipment does not have satellite signals (for example in underneath garage), the equipment can be located through the base station as an aid, the LBS accuracy is 100-2000m.

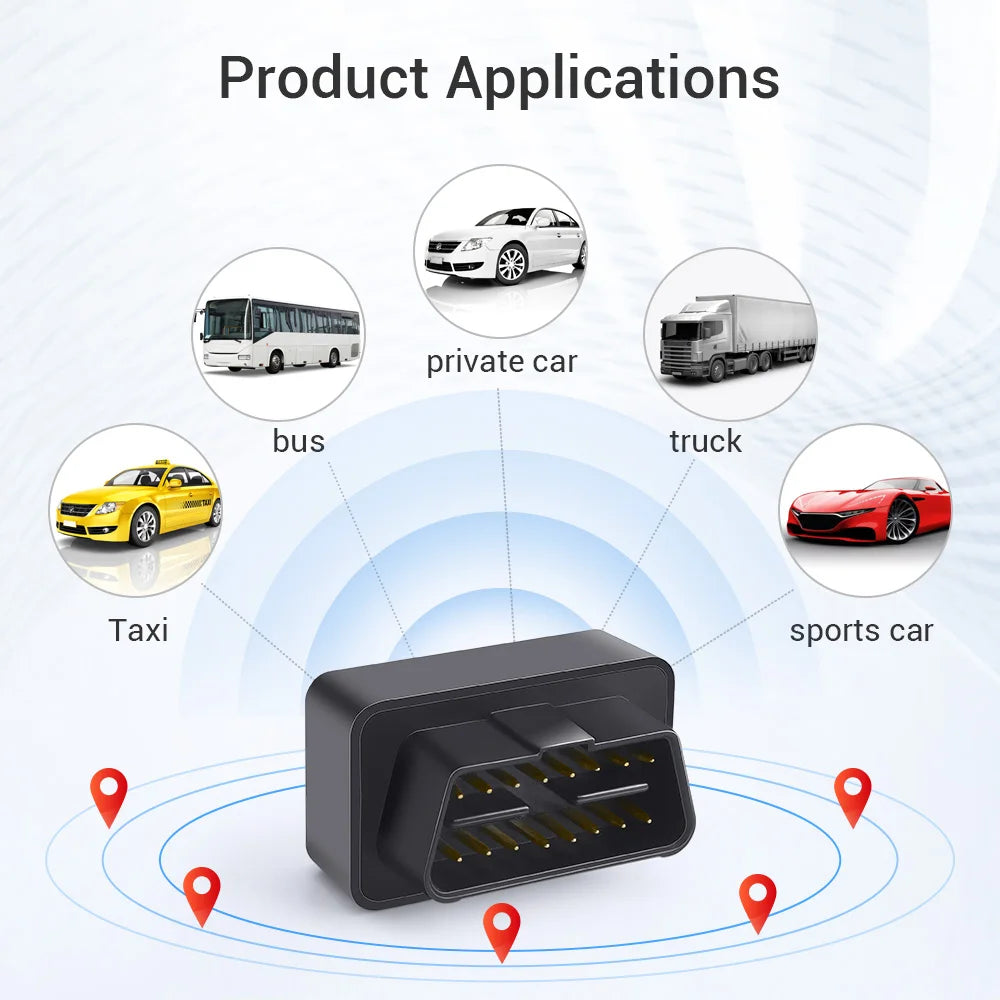

Product Applications
The tracker can be applied in Taxi,bus,private car,truck,sports car, etc.
Product Structure& Product parameters
Multiple Anti-theft Alarms
Battery Detection and Alarm
MV66 can read the car battery voltage and when the voltage is lower than the preset value, the device will send out an alarm message.
Blind Area Data Saving
MV66 can store the position data once met cellular signal blind area and upload to server automatically once signal recovered.
Global Infinite Tracking &Historical Route Playback
It has unlimited tracking distance, you will can realtime track your car on google maps around worldwide via cellphone, tablet and computer. And the minumum upload interval is 5 seconds.
MiCODUS platform can record the history route data up to 180 days.You can review and analysis the data, improve your driving habits and fuel saving.
Useful Lifetime Free Tracking Platform
Website:http://www.micodus.net
Mobile APP:scan the QR code in the image and download the mobile app,log in with the device's id (above device sticker) number and password; (the original password is :123456. You can modify it).
